What is Creep Feed Grinding

For creep feed grinding, cutting depths of up to 20mm infeed are used. The entire allowance of a workpiece can be removed with a few cuts. However, the workpiece or table speed must be considerably reduced compared to the reciprocating grinding process. Creep feed grinding results in high thermal and mechanical loads on the component and system components. This challenge must be met by an adapted design of the process control, the grinding wheel, the dressing process, the machine and the coolant strategy. As a rule, this also increases the machine costs. Due to the increasing customer demands on productivity, creep feed grinding is becoming increasingly important compared to reciprocating grinding. The technological requirements result in different characteristics for the design of the machines.

  • Creep feed grinding is characterized by lower workpiece speeds and higher depths of cut resulting in a larger arc length of contact between the grinding wheel and workpiece when compared with reciprocating or pendulum grinding.
  • Creep feed grinding achieves significantly higher productivity in mass production compared to reciprocating grinding.
  • With today's conventional, highly porous grinding wheels, very high material removal rates are achieved with creep feed grinding.
  • The wheel wear is typically lower than in reciprocating grinding.
  • The surface quality is typically better than in reciprocating grinding.
  • Creep feed grinding operations require rigid and robust machines to ensure the quality of the workpieces given the higher grinding forces.
  • Grinding wheels with vitrified bonds are usually dressed with profile rollers that correspond to the finished workpiece profile.
  • Materials that are difficult to machine, such as nickel-based superalloys like those used in aerospace jet engines, can today be economically processed with electroplated or vitrified CBN grinding wheels.

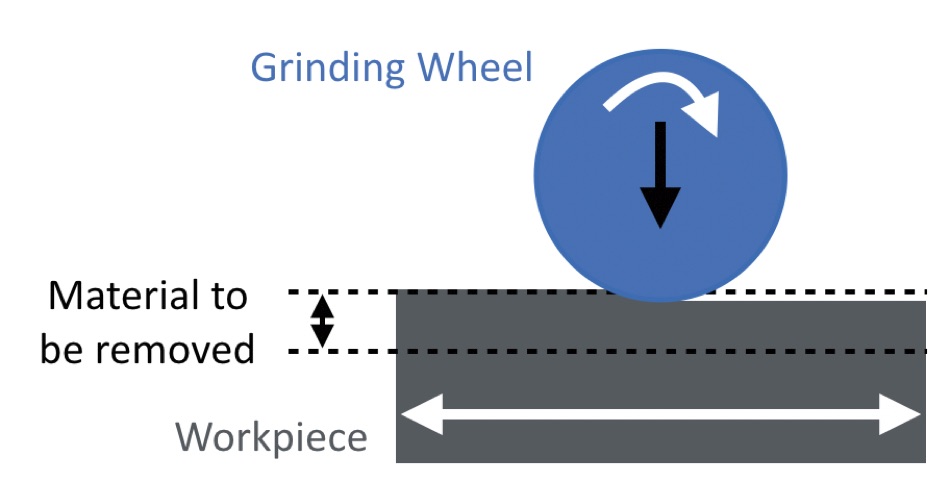

Reciprocating Grinding

 Reciprocating Grinding

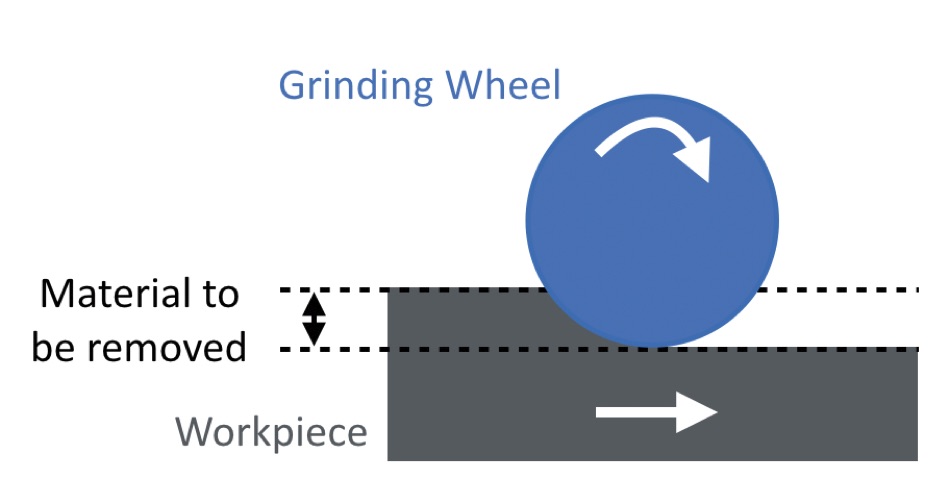

Creep Feed Grinding

Creep Feed Grinding

Depth of Cut [mm]  0.001 to 0.100  1 to 12
Workpiece Speed [m/min]  10 to 40  0.07 to 1
Wheel Speed [m/s]  20 to 50  15 to 45
Arc of Contact [mm]  0.5 to 6.7  17 to 70

Specific Material Removal Rate

Q'w [mm3/(mm/s)]

 0.5 to 4 8 to 80
Number of Grinding Passes  As many as needed to achieve full material removal  Usually 1



Typical Application for Creep Feed Grinding

  • Aerospace flap
  • Lubrication grooves for the bearing industry
  • Teeth grinding for shaver blades
  • Steering pistons for the truck industry
  • Turbine blades
  • Outer diameter profile ofrotor parts.
  • Sliding Caliper
  • Vanes
  • Rocker arm
  • Slots for rotor parts
  • Intermediate lever
  • Shaver blades
  • Toothing of Saw blades
  • Cutting inserts
  • ID grinding stator
  • Lock pins

What is Profile Grinding

In profile grinding, which can be carried out both in reciprocating grinding and creep feed grinding, the grinding wheel is dressed with the profile to be produced. The aim here is to achieve the desired form and geometry tolerances of the workpieces. The profile of the grinding wheel can be produced using different dressing methods. The most common ones are listed belo

  • Profile rolls (expensive to produce, but the most economical solution for series production in large batches)
  • Forming rolls (less costly to produce, but increased dressing times reduce service life)
  •  Profile diamonds (tool with lowest manufacturing costs)
Parallel to this, the demands on the grinding wheels used are also becoming ever higher in terms of stock removal rate and tool life, which can only be met by adapting the dressing tools and dressing strategies to the workpiece material. Since many profile grinding tasks in series production are performed in creep feed grinding, e.g. grinding of turbine blades, CD grinding (continuous dressing) is the most economical solution. The wear of the grinding wheels is immense, but due to the always sharp abrasive grain, higher infeeds and feed rates can be selected.
